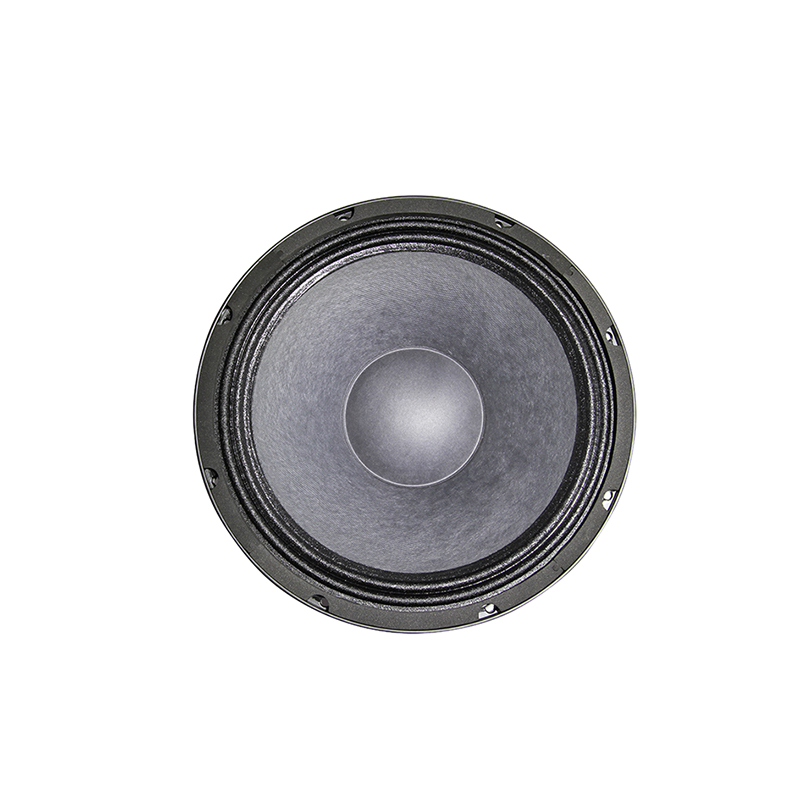

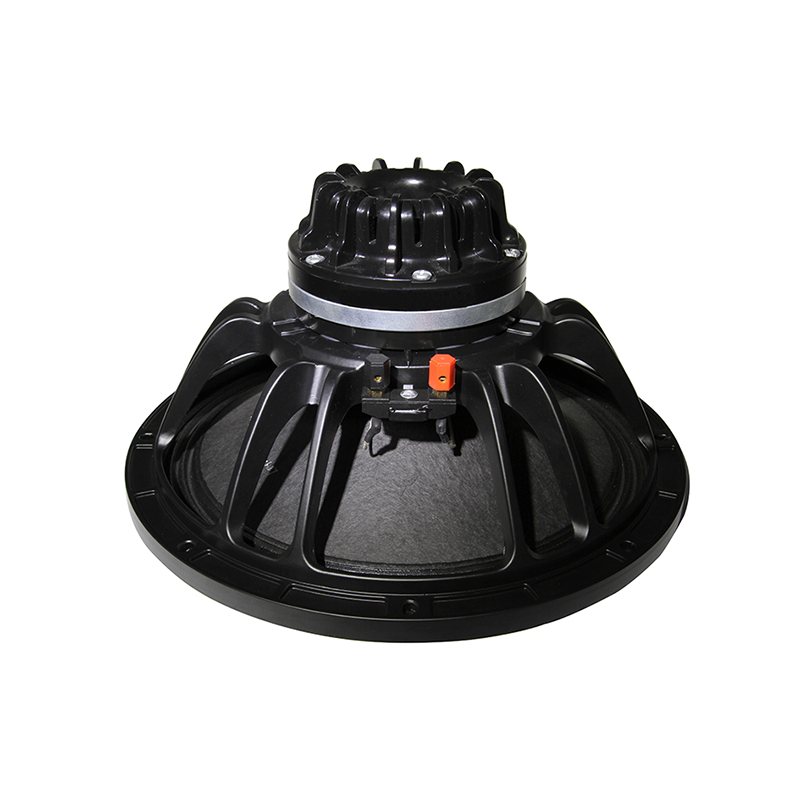

Speaker YH-J1065-08N
Product Details
Diaphragm : Fiber cone
Surround : Double ring cloth edge
Nominal impedance : 5.6¦¸
DCR impedance : 8¦¸
Sensitivity 1W/1M : 98dB
Frequency response : 60-4KHz
Free air resonance : 60Hz
Voice coil diameter : 2*65mm
Air cap height : 6mm
Rated power input : 350W
Max power input : 700W
Force factor BL : 17
Effective piston area : 0.035©O
X-MAX : 5mm
Vas : 37L
Qts : 0.32
Qms : 9.5
Qes : 0.33
RMS : 1.76
FO : 60Hz
Cms : 0.182
Mms : 36
