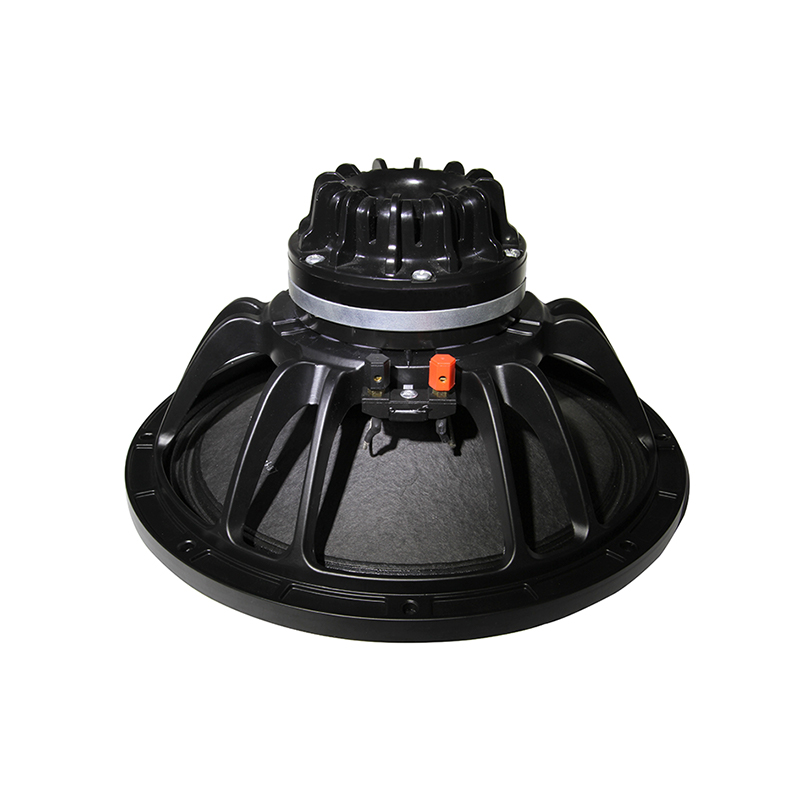

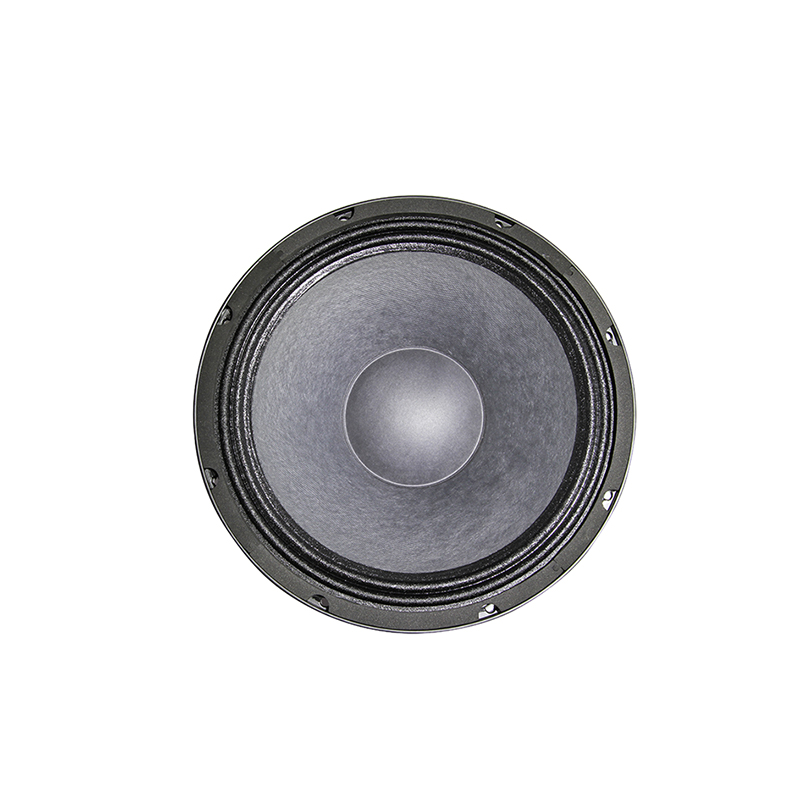

Speaker YH-J1575-08N
Product Details
Diaphragm : Fiber cone
Surround : Double ring cloth edge
Nominal impedance : 5.6¦¸
DCR impedance : 8¦¸
Sensitivity 1W/1M : 103dB
Frequency response : 52-3.5KHz
Free air resonance : 52Hz
Voice coil diameter : 2*75mm
Air cap height : 7mm
Rated power input : 600W
Max power input : 1200W
Force factor BL : 23
Effective piston area : 0.088©O
X-MAX : 6mm
Vas : 126L
Qts : 0.33
Qms : 10.5
Qes : 0.33
RMS : 2
FO : 50Hz
Cms : 0.16
Mms : 91
