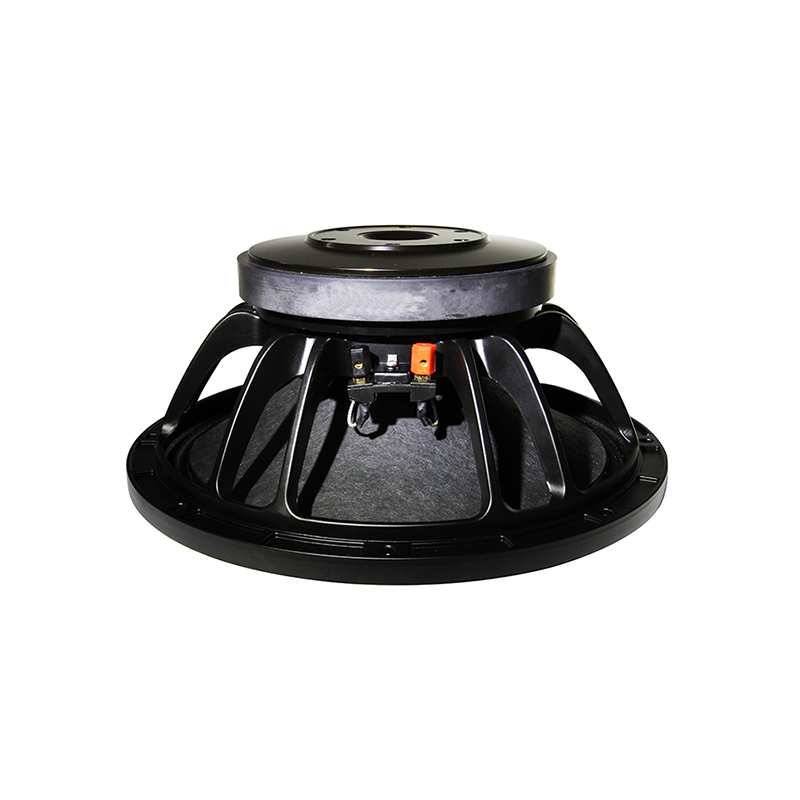

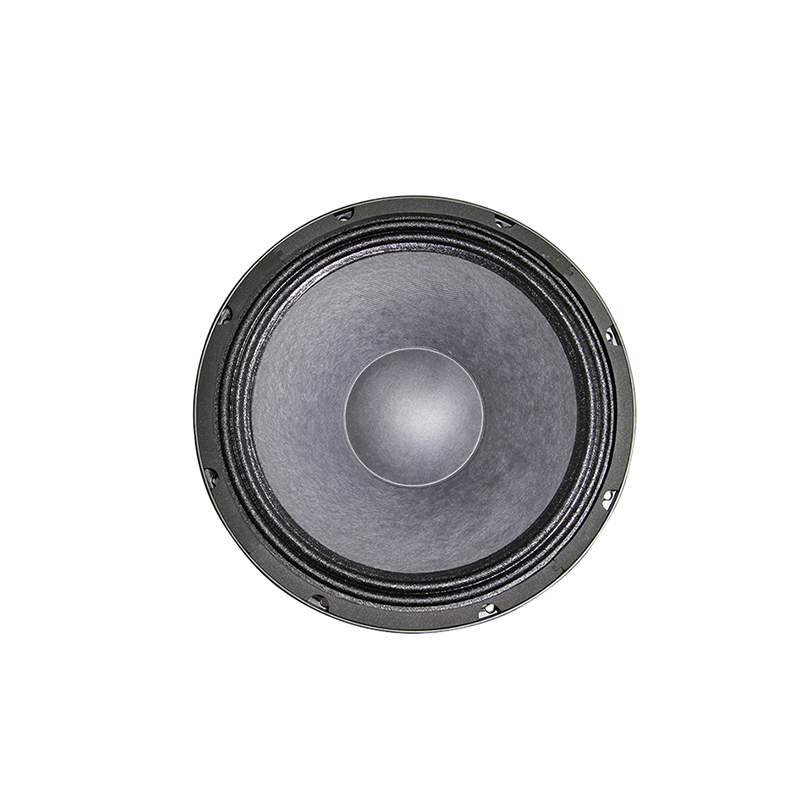

Speaker YH-DP12D-08F
Product Details
Diaphragm : Fiber cone
Surround : Double ring cloth edge
Nominal impedance : 5.6¦¸
DCR impedance : 8¦¸
Sensitivity 1W/1M : 97dB
Frequency response : 50-3.5KHz
Free air resonance : 50Hz
Voice coil diameter : 75mm
Air cap height : 7mm
Rated power input : 350W
Max power input : 700W
Force factor BL : 15.6
Effective piston area : 0.057©O
X-MAX : 5mm
Vas : 68L
Qts : 0.36
Qms : 11.5
Qes : 0.38
RMS : 1.68
FO : 50Hz
Cms : 0.125
Mms : 55
