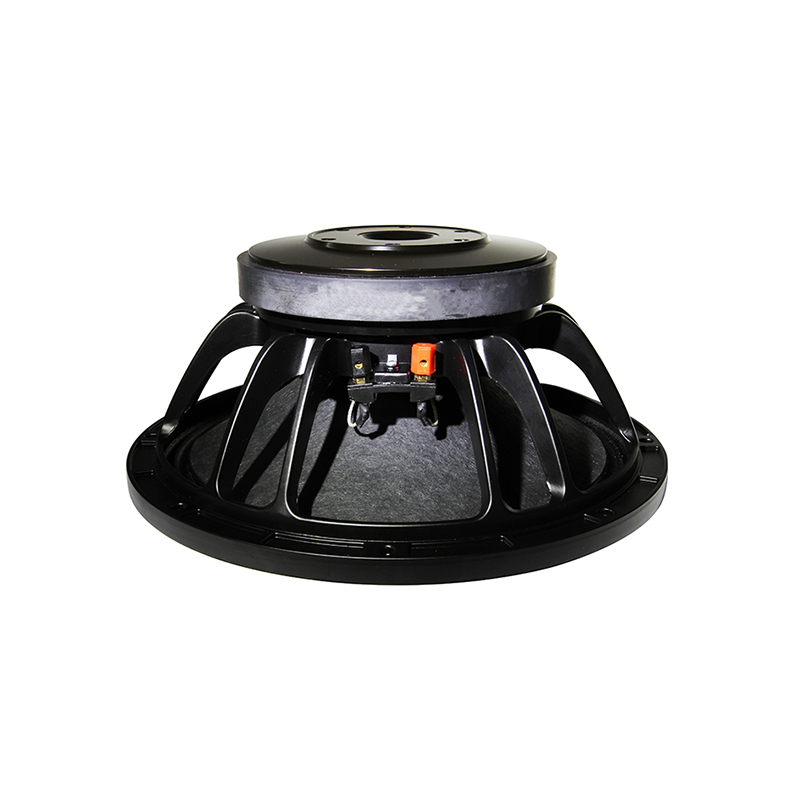

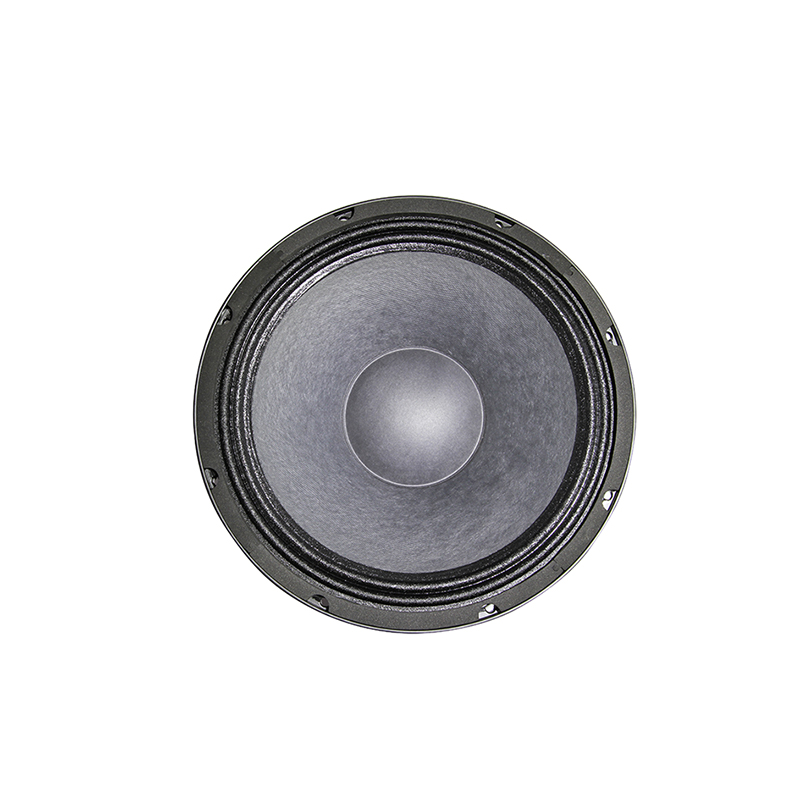

Speaker YH-DP15D-08F
Product Details
Diaphragm : Fiber cone
Surround : Double ring cloth edge
Nominal impedance : 5.6¦¸
DCR impedance : 8¦¸
Sensitivity 1W/1M : 98dB
Frequency response : 40-3.5KHz
Free air resonance : 42Hz
Voice coil diameter : 75mm
Air cap height : 7mm
Rated power input : 400W
Max power input : 800W
Force factor BL : 18
Effective piston area : 0.088©O
X-MAX : 6mm
Vas : 148L
Qts : 0.39
Qms : 10.6
Qes : 0.4
RMS : 1.9
FO : 42Hz
Cms : 0.14
Mms : 90
